S1A0241A01 - DUAL EQ AMP WITH ALC

Samsung semiconductor

📥 Download Datasheet

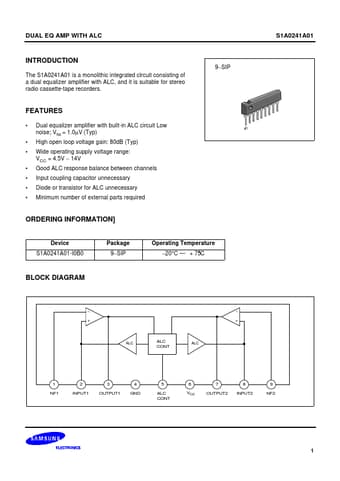

S1A0241A01 Datasheet Preview — Preview of S1A0241A01 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: S1A0241A01
Manufacturer: Samsung semiconductor
File Size: 90.86 KB
Datasheet: S1A0241A01_Samsungsemiconductor.pdf
Description: DUAL EQ AMP WITH ALC

S1A0241A01 Product details

Features

Dual equalizer amplifier with built-in ALC circuit Low noise; VNI = 1.0µV (Typ) High open loop voltage gain: 80dB (Typ) Wide operating supply voltage range: VCC = 4.5V.
14V Good ALC response balance between channels Input coupling capacitor unnecessary Diode or transistor for ALC unnecessary Minimum number of external parts required.
