S1A0291X01 - PB/REC PRE AMP FOR 2 DECK

Samsung semiconductor

📥 Download Datasheet

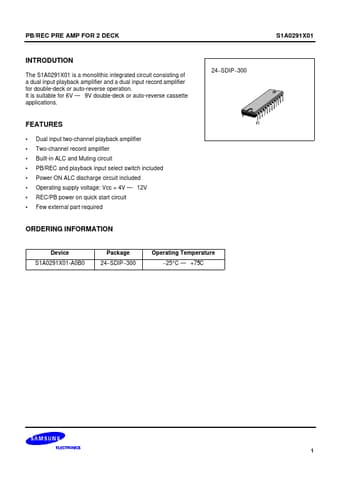

S1A0291X01 Datasheet Preview — Preview of S1A0291X01 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: S1A0291X01
Manufacturer: Samsung semiconductor
File Size: 147.79 KB
Datasheet: S1A0291X01_Samsungsemiconductor.pdf
Description: PB/REC PRE AMP FOR 2 DECK

S1A0291X01 Product details

Features

Dual input two-channel playback amplifier Two-channel record amplifier Built-in ALC and Muting circuit PB/REC and playback input select switch included Power ON ALC discharge circuit included Operating supply voltage: Vcc = 4V.
12V REC/PB power on quick start circuit Few external part required.
