S1A2206D01 - 4.6W AUDIO POWER AMP

Samsung semiconductor

📥 Download Datasheet

S1A2206D01 Datasheet Preview — Preview of S1A2206D01 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: S1A2206D01
Manufacturer: Samsung semiconductor
File Size: 74.37 KB
Datasheet: S1A2206D01_Samsungsemiconductor.pdf
Description: 4.6W AUDIO POWER AMP

S1A2206D01 Product details

Features

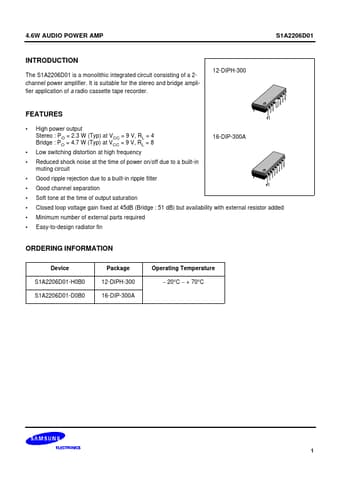

High power output Stereo : PO = 2.3 W (Typ) at VCC = 9 V, RL = 4 Bridge : PO = 4.7 W (Typ) at VCC = 9 V, RL = 8 Low switching distortion at high frequency Reduced shock noise at the time of power on/off due to a built-in muting circuit Good ripple rejection due to a built-in ripple filter Good channel separation Soft tone at the time of output saturation Closed loop voltage gain fixed at 45dB (Bridge : 51 dB) but availability with external resistor added Minimum number of external part.
