S1A2284A01 - 5 DOT LED LEVEL METER DRIVER

Samsung semiconductor

📥 Download Datasheet

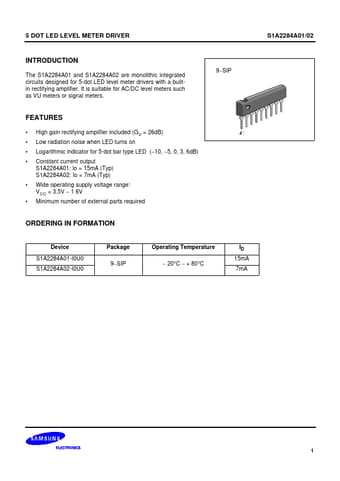

S1A2284A01 Datasheet Preview — Preview of S1A2284A01 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: S1A2284A01
Manufacturer: Samsung semiconductor
File Size: 42.46 KB
Datasheet: S1A2284A01_Samsungsemiconductor.pdf
Description: 5 DOT LED LEVEL METER DRIVER

S1A2284A01 Product details

Features

High gain rectifying amplifier included (GV = 26dB) Low radiation noise when LED turns on Logarithmic indicator for 5-dot bar type LED (.
10,.
5, 0, 3, 6dB) Constant current output S1A2284A01: lo = 15mA (Typ) S1A2284A02: Io = 7mA (Typ) Wide operating supply voltage range: VCC = 3.5V.
1 6V Minimum number of external parts required.
