S1T8501

SPEECH NETWORK WITH DIALER INTERFACE

S1T8501 Features

* Adjusts sending and receiving attenuation length Regulated voltage output for external dialer Linear interface for DTMF Suitable for ceramic transducers Mute function ORDERING INFORMATION Device S1T8501X01-D0B0 Package 16

* DIP

* 300A Op

S1T8501 Datasheet (61.31 KB)

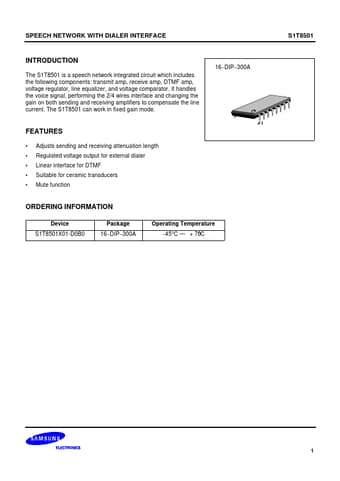

Preview of S1T8501 PDF

Datasheet Details

Part number:

S1T8501

Manufacturer:

Samsung semiconductor

File Size:

61.31 KB

Description:

Speech network with dialer interface.
SPEECH NETWORK WITH DIALER INTERFACE S1T8501 INTRODUCTION The S1T8501 is a speech network integrated circuit which includes the following components.
