S1T8513A

FM IF RECEIVER

Samsung semiconductor

📥 Download PDF (57.08 KB)

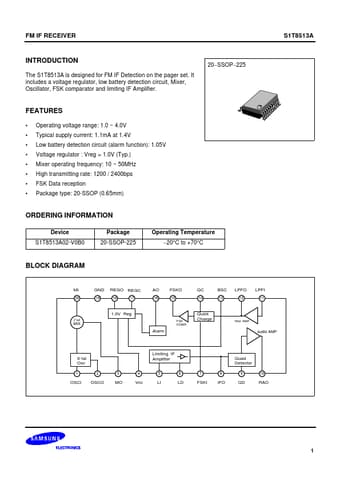

S1T8513A Datasheet Preview Page 1 — Preview of S1T8513A Datasheet

Datasheet Details

Part number:

S1T8513A

Manufacturer:

Samsung semiconductor

File Size:

57.08 KB

Download:

📄 Download S1T8513A Datasheet PDF

Description:

Fm if receiver.
FM IF RECEIVER S1T8513A INTRODUCTION The S1T8513A is designed for FM IF Detection on the pager set.
Pin No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Symbol OSCI OSCO MO VCC LI LD FSK1 IFO QD .

✔ S1T8513A Features

Operating voltage range: 1.0 ~ 4.0V Typical supply current: 1.1mA at 1.4V Low battery detection circuit (alarm function): 1.05V Voltage regulator : Vreg =
