S1T8528

ENHANCED-1 CHIP CT0 RF IC

S1T8528 Features

* Operating voltage range: 2.0V ~ 5.5V Typical supply current: 8.9mA at 3.6V Built-in low battery detection function ( selectable 3.45V, 3.3V, 3.0V, 2.2V, 2.1V ) Built-in speaker volume control and speaker amplifier Built-in splatte

S1T8528 General Description

Pin No 1 Symbol PDT Description Phase detector output terminal of the transmitter at PLL. If fTX > fREF or fTX is leading → the output is negative pulse If fTX < fREF or fTX is lagging → the output is positive pulse If fTX = fREF and the same phase → the output is High Impedance Compressor output te.

S1T8528 Datasheet (1.86 MB)

Preview of S1T8528 PDF

Datasheet Details

Part number:

S1T8528

Manufacturer:

Samsung semiconductor

File Size:

1.86 MB

Description:

Enhanced-1 chip ct0 rf ic.

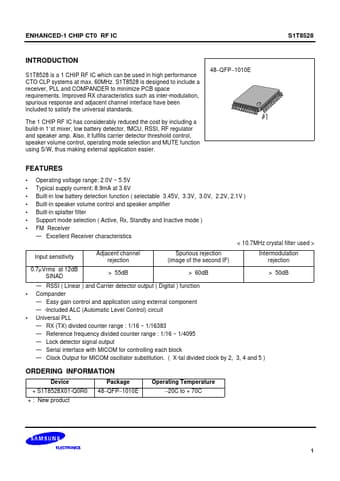

ENHANCED-1 CHIP CT0 RF IC S1T8528 INTRODUCTION S1T8528 is a 1 CHIP RF IC which can be used in high performance CTO CLP systems at max. 60MHz. S1T852.
