S1T8507C

compander - automatic gain control system

S1T8507C Features

* Wide Supply Voltage ( 2.4 to 7V )

* Easy Gain Control

* Mute/Bypath Logic

* Data In/Out Pin 20

* SOP

* 375 ORDERING INFORMATION Device S1T8507C01-D0B0 S1T8507C01-S0B0 Package 20

* DIP

* 300A 20

* SOP

* 375 Operating Temperatu

S1T8507C General Description

Pin No Symbol Description 1 FO Filter Amp Output 2 FI Filter Amp Input 3 CO Compressor Output 4 DI Data Input 5 AGIC AC Gain Infinity Capacitor 6 CRC Compressor Rectifier Capacitor 7 CPI

* Compressor Inverting Input 8 CPI + Compressor Non-Inverting Input 9 CB Compressor Reference .

S1T8507C Datasheet (81.63 KB)

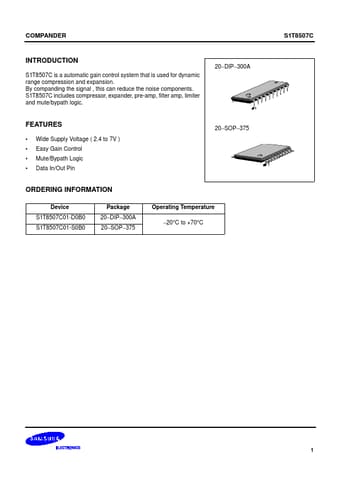

Preview of S1T8507C PDF

Datasheet Details

Part number:

S1T8507C

Manufacturer:

Samsung semiconductor

File Size:

81.63 KB

Description:

Compander - automatic gain control system.
COMPANDER INTRODUCTION S1T8507C is a automatic gain control system that is used for dynamic range compression and expansion. By companding the signal.
