S1T8602B Datasheet - Samsung semiconductor

LOW VOLTAGE AUDIO AMPLIFIER

S1T8602B Features

* Wide Supply Voltage (2 ~ 16V) Low Quiescent Supply Current (ICC = 2.7mA : Typ) Easy Gain Control Medium Output Power PO = 250mW at VCC = 6V, RL = 32Ω, THD = 10% Minimum External Parts Various Load Impedance Range (8Ω ∼ 1

S1T8602B General Description

Pin No 1 Symbol Input (+) Description Analog Ground for the amplifiers. A 1.0µF capacitor at this pin (with a 5.0µF capacitor at pin 8) provides 52dB (Typ) of power supply rejection. Turn-on time of the circuit is affected by the capacitor on this pin. This pin can be used as an alternative input. A.

S1T8602B Datasheet (66.96 KB)

S1T8602B Datasheet Preview — Preview of S1T8602B PDF

Datasheet Details

Part number:

S1T8602B

Manufacturer:

Samsung semiconductor

File Size:

66.96 KB

Description:

Low voltage audio amplifier.

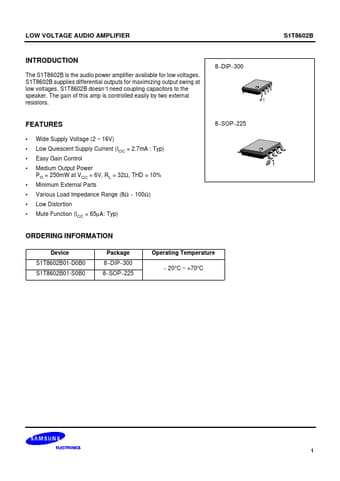

LOW VOLTAGE AUDIO AMPLIFIER S1T8602B INTRODUCTION The S1T8602B is the audio power amplifier available for low voltages. S1T8602B supplies differenti.
