S1T8825B

1.3GHZ DUAL PLL

S1T8825B Features

* Two systems for receiver and transmitter Very low operating current consumption: Icc = Typ. 7.0mA @ 3.0V Low operating power supply voltage : 2.2 to 5.5V ( 200MHz to 550MHz Operating ) 2.7 to 3.6V ( 550MHz to 1

S1T8825B General Description

Pin No. 1 2, 15 3 4, 13 5 6 7 8 9 10 11 12 14 16 Symbol Fin1 Vcc CP1 GND LD CK DATA EN BO OSCO OSCI SW CP2 Fin2 I/O I

* O

* O I I I O O I O O I Description Input terminal of channel 1 RF signal. Power supply voltage input. PIN2 and PIN15 are connected together. Output terminal of cha.

S1T8825B Datasheet (339.57 KB)

Preview of S1T8825B PDF

Datasheet Details

Part number:

S1T8825B

Manufacturer:

Samsung semiconductor

File Size:

339.57 KB

Description:

1.3ghz dual pll.

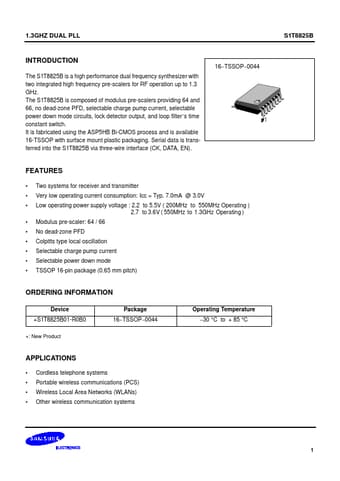

www.DataSheet.co.kr 1.3GHZ DUAL PLL S1T8825B INTRODUCTION The S1T8825B is a high performance dual frequency synthesizer with two integrated high fr.
