S524A60X51 1K/2K/4K/8K/16K-bit Serial EEPROM

Name A0, A1, A2 Type Input Description Input pins for device address selection. To configure a device address, these pins should be connected to the VCC or VSS of the device. These pins are internally pulled down to VSS. Ground pin. Bi-directional data pin for the I2C-bus serial data interface. Sch.

S524A60X51 Features

* I2C-Bus Interface

* Two-wire serial interface Automatic word address increment

* Operating Characteristics

* Operating voltage

* 1.8 V to 5.5 V Operating current

* Maximum write current: < 3 mA at 5.5 V

* Maximum read current: < 200 µA at 5.5

S524A60X51_Samsungsemiconductor.pdf

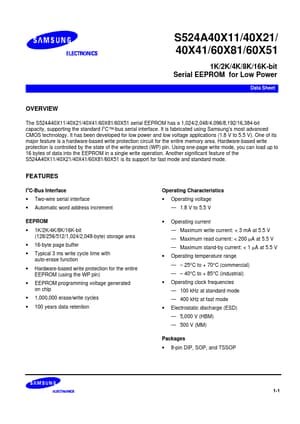

S524A60X51 Datasheet Preview — Preview of S524A60X51 PDF

Datasheet Details

Part number:

S524A60X51

Manufacturer:

Samsung semiconductor

File Size:

124.54 KB

Description:

1k/2k/4k/8k/16k-bit serial eeprom.
