S524A60X81 Datasheet - Samsung semiconductor

S524A60X81 - 1K/2K/4K/8K/16K-bit Serial EEPROM

Name A0, A1, A2 Type Input Description Input pins for device address selection.

To configure a device address, these pins should be connected to the VCC or VSS of the device.

These pins are internally pulled down to VSS.

Ground pin.

Bi-directional data pin for the I2C-bus serial data interface.

Sch

S524A60X81 Features

* I2C-Bus Interface

* Two-wire serial interface Automatic word address increment

* Operating Characteristics

* Operating voltage

* 1.8 V to 5.5 V Operating current

* Maximum write current: < 3 mA at 5.5 V

* Maximum read current: < 200 µA at 5.5

S524A60X81_Samsungsemiconductor.pdf

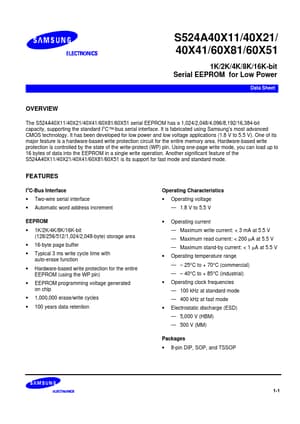

Preview of S524A60X81 PDF
