Datasheet Details
Part number:
K9F6408U0B-TIB0, K9F6408U0B-TCB0
Manufacturer:
Samsung
File Size:
416.02 KB
Description:
8m x 8 bit nand flash memory.
Note:
This datasheet PDF includes multiple part numbers: K9F6408U0B-TIB0, K9F6408U0B-TCB0.
Please refer to the document for exact specifications by model.
K9F6408U0B-TIB0, K9F6408U0B-TCB0, 8M x 8 Bit NAND Flash Memory
The K9F6408U0B is a 8M(8,388,608)x8bit NAND Flash Memory with a spare 256K(262,144)x8bit.
Its NAND cell provides the most cost-effective solution for the solid state mass storage market.
A program operation programs the 528-byte page in typical 200µs and an erase operation can be performed in typica

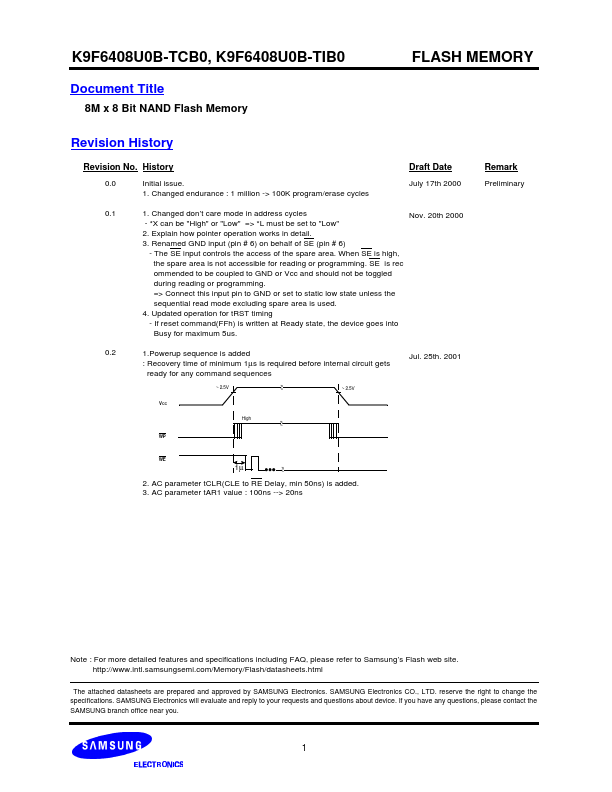

K9F6408U0B-TCB0, K9F6408U0B-TIB0 Document Title 8M x 8 Bit NAND Flash Memory FLASH MEMORY Revision History Revision No.
History 0.0 Initial issue.
1.
Changed endurance : 1 million -> 100K program/erase cycles Draft Date July 17th 2000 0.1 1.
Changed don’t care mode in address cycles - X can be "High" or "Low" => L must be set to "Low" Nov.
20th 2000 2.
Explain how pointer operation works in detail.
3.
Renamed GND input (pin # 6) on behalf of SE (pin # 6) - The SE input co
K9F6408U0B-TIB0 Features
* and specifications including FAQ, please refer to Samsung’s Flash web site. http://www.intl.samsungsemi.com/Memory/Flash/datasheets.html The attached datasheets are prepared and approved by SAMSUNG Electronics. SAMSUNG Electronics CO., LTD. reserve the right to change the specifications. SAMSUNG Ele
