M378T3354BG - DDR2 Unbuffered SDRAM MODULE

M378T3354BG Description

256MB,512MB,1GB Unbuffered DIMMs DDR2 SDRAM DDR2 Unbuffered SDRAM MODULE 240pin Unbuffered Module based on 512Mb B-die 64/72-bit Non-ECC/ECC Revisi.
Pin Name A0-A13 BA0, BA1 RAS CAS WE S0, S1 CKE0,CKE1 ODT0, ODT1 DQ0 - DQ63 CB0 - CB7 DQS0 - DQS8 DM(0-8) DQS0-DQS8 Description DDR2 SDRAM address bus.

M378T3354BG Features

* Performance range D5(DDR2-533) Speed@CL3 Speed@CL4 Speed@CL5 CL-tRCD-tRP 400 533 4-4-4 CC(DDR2-400) 400 400 3-3-3 Unit Mbps Mbps Mbps CK
* JEDEC standard 1.8V ± 0.1V Power Supply
* VDDQ = 1.8V ± 0.1V
* 200 MHz fCK for 400Mb/sec/pin, 267MHz fCK for 533Mb/sec/pin

📥 Download Datasheet

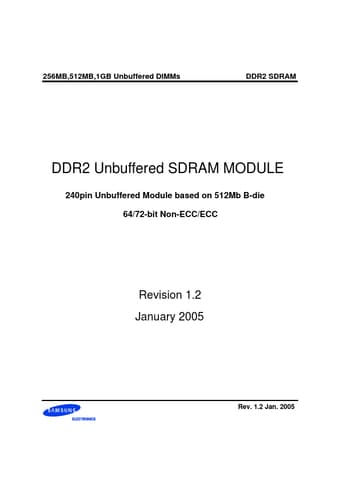

Preview of M378T3354BG PDF
datasheet Preview Page 2 datasheet Preview Page 3
