PE70F120 THRISTOR MODULE

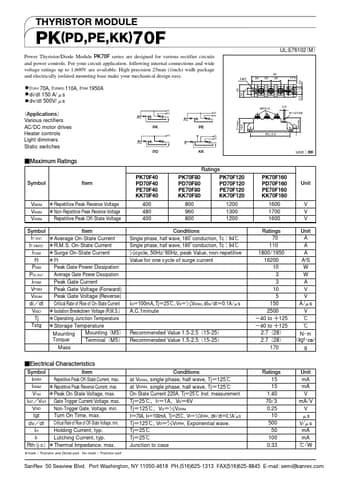

THYRISTOR MODULE PK(PD,PE,KK)70F UL:E76102 M Power Thyristor/Diode Module PK70F series are designed for various rectifier circuits and power controls. For your circuit application. following internal connections and wide voltage ratings up to 1,600V are available. High precision 25mm (1inch) widh package and electrically isolated mounting base make your mechanical design easy. IT(AV) 70A, IT(RMS) 110A, ITSM 1950A di/dt 150 A/ s dv/dt 500V/ s Applications Various rectifiers AC/DC motor drives He.

PE70F_SanRexCorporation.pdf

PE70F120 Datasheet Preview — This datasheet PDF includes multiple part numbers: PE70F120, PE70F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PE70F120, PE70F

Manufacturer:

SanRex Corporation

File Size:

174.43 KB

Description:

Thristor module.

Note:

This datasheet PDF includes multiple part numbers: PE70F120, PE70F.
Please refer to the document for exact specifications by model.
