PE70F80 Datasheet - SanRex Corporation

PE70F80 THRISTOR MODULE

THYRISTOR MODULE PK(PD,PE,KK)70F UL:E76102 M Power Thyristor/Diode Module PK70F series are designed for various rectifier circuits and power controls. For your circuit application. following internal connections and wide voltage ratings up to 1,600V are available. High precision 25mm (1inch) widh package and electrically isolated mounting base make your mechanical design easy. IT(AV) 70A, IT(RMS) 110A, ITSM 1950A di/dt 150 A/ s dv/dt 500V/ s Applications Various rectifiers AC/DC motor drives He.

PE70F80 Datasheet (174.43 KB)

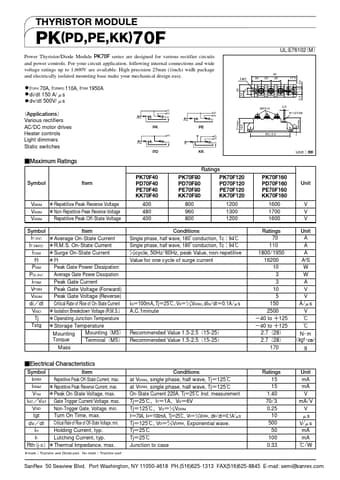

Preview of PE70F80 PDF
PE70F80 Datasheet Preview Page 2

Datasheet Details

Part number:

PE70F80

Manufacturer:

SanRex Corporation

File Size:

174.43 KB

Description:

Thristor module.
