DFA150AA80 Datasheet - SanRex

DFA150AA80 THREE PHASE DIODE + THYRISTOR

THREE PHASE DIODE THYRISTOR DFA150AA80/160 SanRex Power Module, DFA150AA, is complex isolated module which is designed for rash current circuit. It contains six diodes connected in a three phase bridge configuration, and a thyristor connected to a direct current line. This Module is designed very compactly. Because diode module and thyristor put together. This Module is also isolated type between electorode terminal and mounting base. So you can put this Module and other one together in a same .

DFA150AA80 Datasheet (117.83 KB)

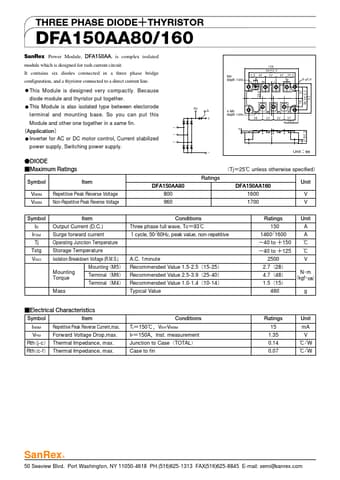

Preview of DFA150AA80 PDF
DFA150AA80 Datasheet Preview Page 2 DFA150AA80 Datasheet Preview Page 3

Datasheet Details

Part number:

DFA150AA80

Manufacturer:

SanRex

File Size:

117.83 KB

Description:

Three phase diode + thyristor.
