DS065020D3

SiC Schottky Barrier Diode

DS065020D3 General Description

VRRM 650 V IF(135℃) 25 A QC 55 nC TO-252-2L PIN 1 PIN 2 CASE Marking DS065020D3 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) VRRM 650 TC =25℃ Reverse Voltage (Surge peak) VRSM 650 V TC =25℃ Reverse voltage (DC) VDC .

DS065020D3 Datasheet (320.98 KB)

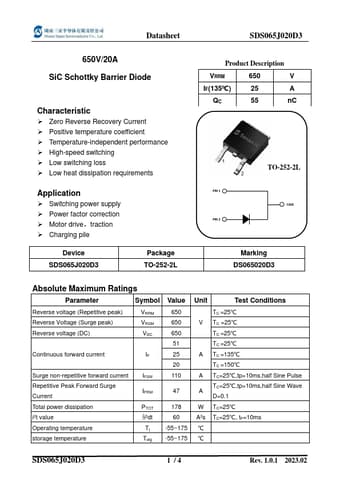

DS065020D3 Datasheet Preview — Preview of DS065020D3 PDF

Datasheet Details

Part number:

DS065020D3

Manufacturer:

Sanan

File Size:

320.98 KB

Description:

Sic schottky barrier diode.
Datasheet SDS065J020D3 650V/20A SiC Schottky Barrier Diode Characteristic

* Zero Reverse Recovery Current

* Positive temperature co.
