DS120010G3 - SiC Schottky Barrier Diode

Product Overview

📥 Download Datasheet

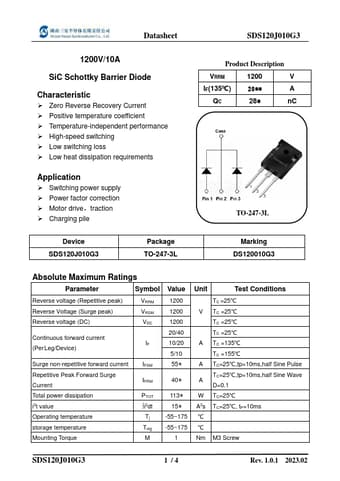

Datasheet preview – DS120010G3

Datasheet Details

Part number DS120010G3
Manufacturer Sanan
File Size 322.17 KB
Description SiC Schottky Barrier Diode
Datasheet download datasheet DS120010G3 Datasheet
Additional preview pages of the DS120010G3 datasheet.

Product details

Description

VRRM 1200 V IF(135℃) 20 A QC 28 nC TO-247-3L Device SDS120J010G3 Package TO-247-3L Marking DS120010G3 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) Reverse Voltage (Surge peak) Reverse voltage (DC) Continuous forward current (Per Leg/Device) Surge non-repetitive forward current Repetitive Peak Forward Surge Current Total power dissipation i2t value Operating temperature storage temperature Mounting Torque
