DS120015H3 Datasheet - Sanan

SiC Schottky Barrier Diode

DS120015H3 General Description

VRRM 1200 V IF(135℃) 23 A QC 82 nC TO-247-2L Device SDS120J015H3 Package TO-247-2L Marking DS120015H3 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) Reverse Voltage (Surge peak) Reverse voltage (DC) VRRM VRSM VDC Continuous .

DS120015H3 Datasheet (311.88 KB)

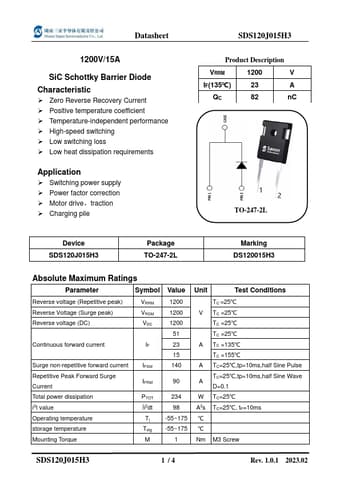

DS120015H3 Datasheet Preview — Preview of DS120015H3 PDF

Datasheet Details

Part number:

DS120015H3

Manufacturer:

Sanan

File Size:

311.88 KB

Description:

Sic schottky barrier diode.
Datasheet 1200V/15A SiC Schottky Barrier Diode Characteristic Zero Reverse Recovery Current Positive temperature coefficient <.
