1N5818W, 1N5817W SCHOTTKY BARRIER DIODE

1N5818W Description

Technical Data Data Sheet N1756, Rev.- 1N5817W-1N5819W SCHOTTKY BARRIER DIODE .

1N5818W Features

* Metal silicon junction, majority carrier conduction
* Guarding for overvoltage protection
* Low power loss, high efficiency
* High current capability
* Low forward voltage drop
* High surge capability
* For use in low voltage, high frequency

1N5818W Applications

* Mechanical Data:
* Case: SOD-123FL molded plastic body
* Terminals: Solder plated, solderable per MIL-STD-750, Method 2026
* Polarity: Color band denotes cathode end
* Mounting Position: Any Mechanical Dimensions: In mm/Inches 1N5817W-1N5819W Green Products Symbol A

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5818W, 1N5817W. Please refer to the document for exact specifications by model.

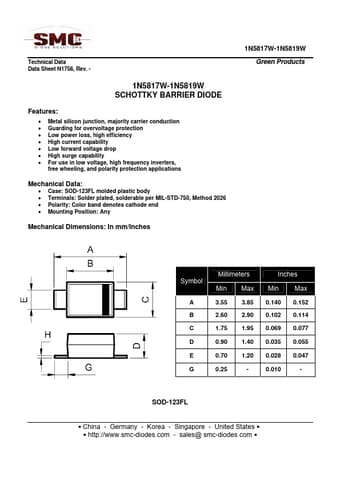

datasheet Preview Page 2 datasheet Preview Page 3
