* Glass passivated die construction
* Low forward voltage drop
* High current capability
* High surge current capability
* Designed for surface mount application
* Plastic material-UL flammability 94V-0
* This is a Pb
* Free Device
* All SMC parts are traceabl
DF150S
Sangdest
287.35 KB
Single-phase 1.5a surface mount glass passivated bridge rectifiers.

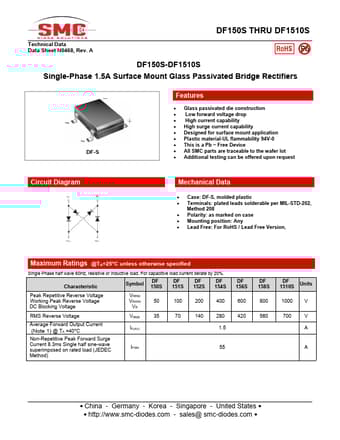

DF150S THRU DF1510S
Technical Data Data Sheet N0468, Rev. A
DF150S-DF1510S Single-Phase 1.5A Surface Mount Glass Passivated Bridge Rectifiers
DF-S
