DF1510S

Single-Phase 1.5A Surface Mount Glass Passivated Bridge Rectifiers

DF1510S Features

* Glass passivated die construction

* Low forward voltage drop

* High current capability

* High surge current capability

* Designed for surface mount application

* Plastic material-UL flammability 94V-0

* This is a Pb

* Free Device

* All SMC parts are traceabl

DF1510S Datasheet (287.35 KB)

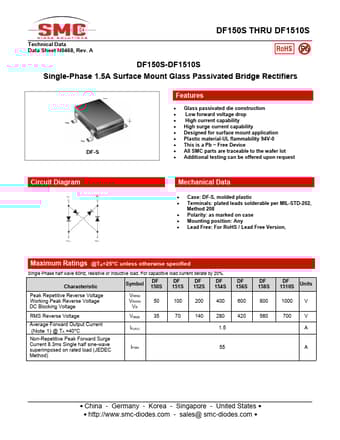

Preview of DF1510S PDF

Datasheet Details

Part number:

DF1510S

Manufacturer:

Sangdest

File Size:

287.35 KB

Description:

Single-phase 1.5a surface mount glass passivated bridge rectifiers.
DF150S THRU DF1510S Technical Data Data Sheet N0468, Rev. A DF150S-DF1510S Single-Phase 1.5A Surface Mount Glass Passivated Bridge Rectifiers DF-S F.
