STR-W6200D

PWM Off-Line Switching Regulator

STR-W6200D Features

* ▪ TO-220 fully-molded package with 6 pins ▪ Current mode PWM control ▪ PWM and frequency modulation functions: reduces EMI noise, simplifies EMI filters, and cuts cost by external part reduction ▪ Built-in Slope Compensation circuit: avoids subharmonic oscillation ▪ Automatic Standby Mode function (

STR-W6200D General Description

The STR-W6200D series are power ICs for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC in one package. Including a startup circuit and a standby function in the controller, the product achieves low power consumption, low standby power, and high cost-effec.

STR-W6200D Datasheet (429.12 KB)

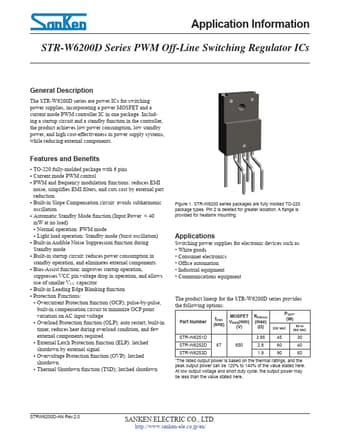

Preview of STR-W6200D PDF

Datasheet Details

Part number:

STR-W6200D

Manufacturer:

Sanken ↗ Electric

File Size:

429.12 KB

Description:

Pwm off-line switching regulator.
