STR-W6053S, STRW605xS Off-Line PWM Controllers

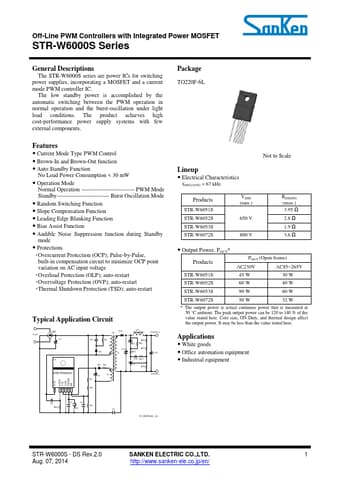

📥 Download Datasheet  Datasheet Preview Page 1

Description

Off-Line PWM Controllers with Integrated Power MOSFET STR-W6000S Series General .
The STR-W6000S series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STR-W6053S, STRW605xS. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STR-W6053S, STRW605xS
Manufacturer
Sanken ↗
File Size
730.09 KB
Datasheet
STRW605xS_Sanken.pdf
Description
Off-Line PWM Controllers
Note
This datasheet PDF includes multiple part numbers: STR-W6053S, STRW605xS.
Please refer to the document for exact specifications by model.

Features

* Current Mode Type PWM Control
* Brown-In and Brown-Out function
* Auto Standby Function No Load Power Consumption < 30 mW
* Operation Mode Normal Operation
