STR-W6000S

Off-Line PWM Controllers

STR-W6000S Features

* Current Mode Type PWM Control

* Brown-In and Brown-Out function

* Auto Standby Function No Load Power Consumption < 30 mW

* Operation Mode Normal Operation

STR-W6000S General Description

The STR-W6000S series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC. The low standby power is accomplished by the automatic switching between the PWM operation in normal operation and the burst-oscillation under light load conditions. The pr.

STR-W6000S Datasheet (720.07 KB)

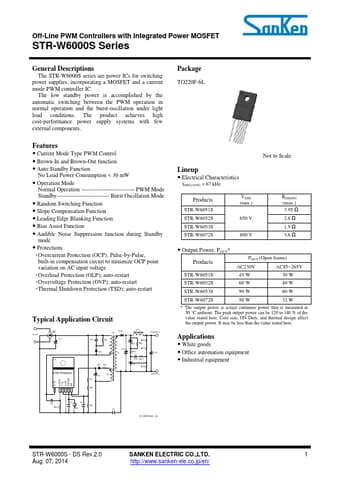

Preview of STR-W6000S PDF

Datasheet Details

Part number:

STR-W6000S

Manufacturer:

Sanken ↗

File Size:

720.07 KB

Description:

Off-line pwm controllers.
