2SA1693 Datasheet - Sanken electric

2SA1693 Silicon PNP Transistor

2SA1693 Silicon PNP Epitaxial Planar Transistor (Complement to type 2SC4466) Application : Audio and General Purpose sAbsolute maximum ratings (Ta=25°C) Symbol Ratings Unit VCBO 80 V VCEO 80 V VEBO 6 V IC 6 A IB 3 A PC 60(Tc=25°C) W Tj 150 °C Tstg 55 to +150 °C sElectrical Characteristics (Ta=25°C) Symbol Conditions Ratings Unit ICBO IEBO V(BR)CEO hFE VCB= 80V VEB= 6V IC= 50mA VCE=<.

2SA1693_Sankenelectric.pdf

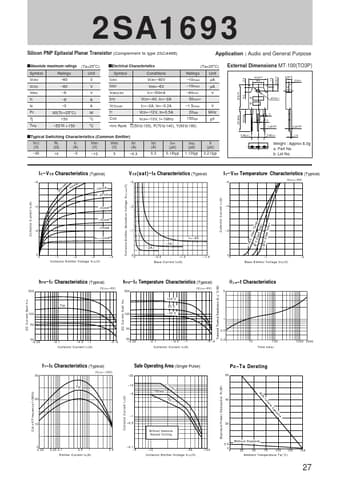

Preview of 2SA1693 PDF

Datasheet Details

Part number:

2SA1693

Manufacturer:

Sanken ↗ electric

File Size:

28.30 KB

Description:

Silicon pnp transistor.
