2SA1694 Datasheet - Sanken electric

2SA1694 Silicon PNP Transistor

2SA1694 Silicon PNP Epitaxial Planar Transistor (Complement to type 2SC4467) Application : Audio and General Purpose sAbsolute maximum ratings (Ta=25°C) Symbol Ratings Unit VCBO 120 V VCEO 120 V VEBO 6 V IC 8 A IB 3 A PC 80(Tc=25°C) W Tj 150 °C Tstg 55 to +150 °C sElectrical Characteristics (Ta=25°C) Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) fT COB Conditions VCB= 120V VEB= 6V IC= 50mA VC.

2SA1694_Sankenelectric.pdf

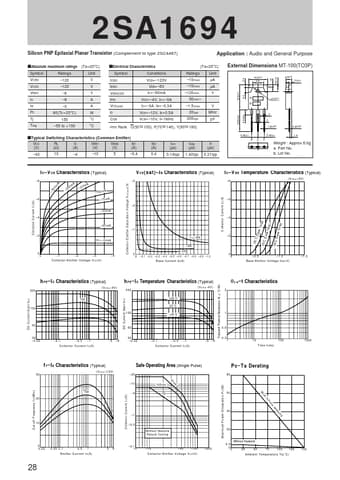

Preview of 2SA1694 PDF

Datasheet Details

Part number:

2SA1694

Manufacturer:

Sanken ↗ electric

File Size:

28.40 KB

Description:

Silicon pnp transistor.
