2SA1697 - PNP/NPN Epitaxial Planar Silicon Transistors

2SA1697 Description

Ordering number:EN3018 PNP/NPN Epitaxial Planar Silicon Transistors 2SA1697/2SC4474 High-Definition CRT Display, Video Output Applications Applicati.

2SA1697 Features

* High fT : fT=300MHz.
* High breakdown voltage : VCEO=200V min.
* Small reverse transfer capacitance and excellent high frequency characteristic : Cre=2.2pF/NPN, 2.7 pF/PNP
* Adoption of FBET process.
* Micaless type. Package Dimensions unit:mm 2041 [2SA1697/2SC4474] ( ) : 2SA

2SA1697 Applications

* Applications

📥 Download Datasheet

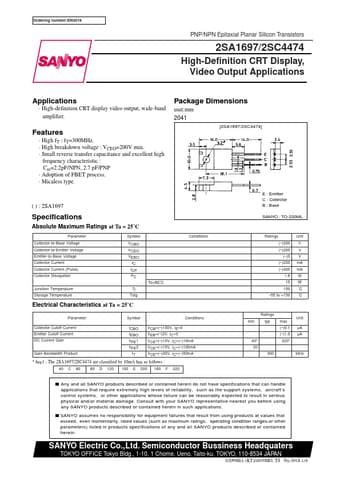

Preview of 2SA1697 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1697
Manufacturer
Sanyo Semicon Device
File Size
107.24 KB
Datasheet
2SA1697_SanyoSemiconDevice.pdf
Description
PNP/NPN Epitaxial Planar Silicon Transistors
