2SA1696 - PNP/NPN Epitaxial Planar Silicon Transistors

2SA1696 Description

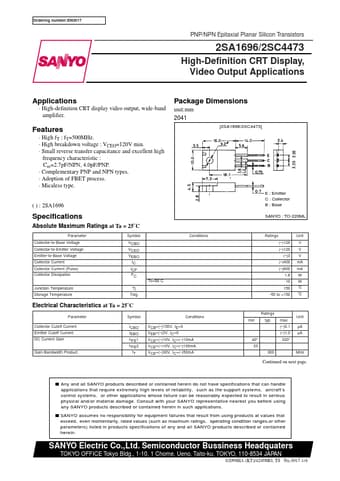

Ordering number:EN3017 PNP/NPN Epitaxial Planar Silicon Transistors 2SA1696/2SC4473 High-Definition CRT Display, Video Output Applications Applicati.

2SA1696 Features

* High fT : fT=500MHz.
* High breakdown voltage : VCEO=120V min.
* Small reverse transfer capacitance and excellent high frequency characteristic : Cre=2.7pF/NPN, 4.0pF/PNP.
* Complementary PNP and NPN types.
* Adoption of FBET process.
* Micaless type. ( ) : 2SA1696 Specific
