2SC5271 Datasheet - Sanken electric

2SC5271 NPN TRANSISTOR

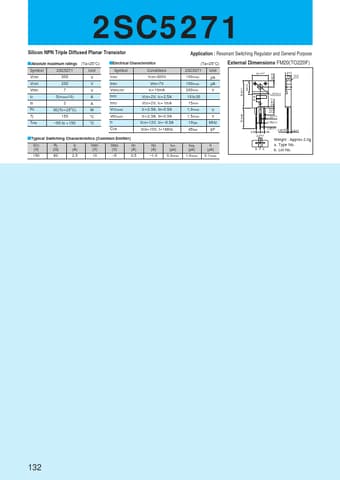

2SC5271 Silicon NPN Triple Diffused Planar Transistor sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SC5271 300 200 7 5(Pulse10) 2 30(Tc=25°C) 150 55 to +150 Unit V V V A A W °C °C Application : Resonant Switching Regulator and General Purpose (Ta=25°C) 2SC5271 100max 100max 200min 10 to 30 15min 1.0max 1.5max 10typ 45typ V V MHz pF 13.0min sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE1 hFE2 VCE(sat) VBE(sat) fT COB Conditions VCB=300V VEB=7V I.
