SAH02 Silicon PNP Epitaxial Planar Transistor with Shottky Barrier Diode(Chopper Regulator)

Equivalent circuit SAH02 Silicon PNP Epitaxial Planar Transistor with Shottky Barrier Diode 2 4 1 3 Application : Chopper Regulator (Ta=25°C) SAH02 10max 10max 30min 100min 150min 0.3max 100typ 45typ 30 min 0.55 max 15 typ sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg SAH02 30 30 10 3 0.5 800(Ta=25°C) 125 40 to +125 Unit V V V A A mW °C °C sElectrical Characteristics Sym.

SAH02_Sankenelectric.pdf

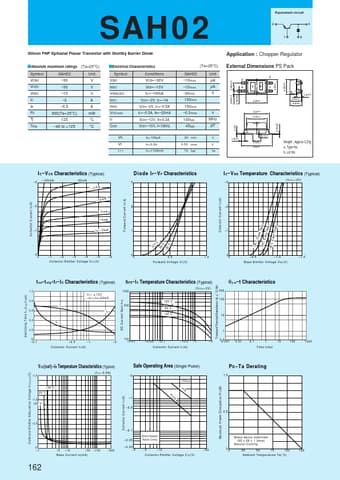

Preview of SAH02 PDF

Datasheet Details

Part number:

SAH02

Manufacturer:

Sanken ↗ electric

File Size:

22.40 KB

Description:

Silicon pnp epitaxial planar transistor with shottky barrier diode(chopper regulator).
