SI-8090E - DC/DC Converter

SI-8090E Description

qSI-8000E Series SI-8000E Series Full-Mold, Separate Excitation Switching Type s.

SI-8090E Features

* Compact full-mold package (equivalent to TO220) High efficiency: 80 to 88% Requires only 4 external components Phase correction and output voltage adjustment performed internally Built-in reference oscillator (60kHz) Built-in overcurrent an

SI-8090E Applications

* Power supplies for telecommunication equipment
* Onboard local power supplies sLineup Part Number VO(V) IO(A) SI-8050E 5.0 SI-8090E 9.0 0.6 SI-8120E 12.0 sAbsolute Maximum Ratings Parameter DC Input Voltage Power Dissipation Junction Temperature Storage Temperature SW Terminal Ap

📥 Download Datasheet

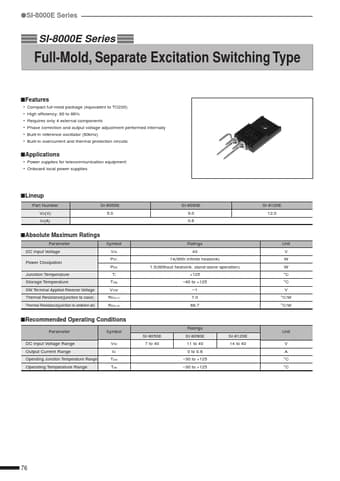

Preview of SI-8090E PDF
datasheet Preview Page 2 datasheet Preview Page 3
