STR3A251 - Off-Line PWM Controllers

Product Overview

Sanken electric

📥 Download Datasheet

STR3A251 Off-Line PWM Controllers by Sanken electric - Datasheet Preview — Datasheet preview – STR3A251

Datasheet Details

Part number	STR3A251
Manufacturer	Sanken electric
File Size	708.82 KB
Description	Off-Line PWM Controllers
Datasheet	STR3A251 Datasheet
Note	This datasheet PDF includes multiple part numbers: STR3A251, STR3A200. Please refer to the document for exact specifications by model.

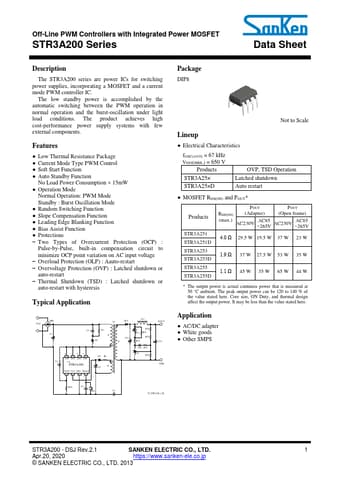

Additional preview pages of the STR3A251 datasheet.

Product details

Description

The STR3A200 series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

Features

Low Thermal Resistance Package.
Current Mode Type PWM Control.
Soft Start Function.
Auto Standby Function No Load Power Consumption < 15mW.
Operation Mode Normal Operation: PWM Mode Standby : Burst Oscillation Mode.
Random Switching Function.
Slope Compensation Function.
Leading Edge Blanking Function.
Bias Assist Function.
Protections.
Two Types of Overcurrent Protection (OCP) : Pulse-by-Pulse, built-in compensation circuit to minimize.
