STR3A255, STR3A200 Off-Line PWM Controllers

Sanken electric

Description

Off-Line PWM Controllers with Integrated Power MOSFET STR3A200 Series Data Sheet .
The STR3A200 series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

📥 Download Datasheet

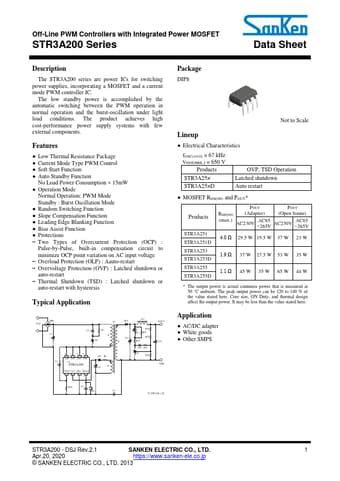

STR3A255 Datasheet Preview — This datasheet PDF includes multiple part numbers: STR3A255, STR3A200. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STR3A255, STR3A200
Manufacturer: Sanken ↗ electric
File Size: 708.82 KB
Datasheet: STR3A200-Sankenelectric.pdf
Description: Off-Line PWM Controllers
Note: This datasheet PDF includes multiple part numbers: STR3A255, STR3A200.
Please refer to the document for exact specifications by model.

Features

* Low Thermal Resistance Package
* Current Mode Type PWM Control
* Soft Start Function
* Auto Standby Function No Load Power Consumption < 15mW
* Operation Mode Normal Operation: PWM Mode Standby : Burst Oscillation Mode
* Random Switching Function
* Slope Compensation Fu
