STR3A255D, STR3A200 Off-Line PWM Controllers

STR3A255D Description

Off-Line PWM Controllers with Integrated Power MOSFET STR3A200 Series Data Sheet .
The STR3A200 series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

STR3A255D Features

* Low Thermal Resistance Package
* Current Mode Type PWM Control
* Soft Start Function
* Auto Standby Function No Load Power Consumption < 15mW
* Operation Mode Normal Operation: PWM Mode Standby : Burst Oscillation Mode
* Random Switching Function
* Slope Compensation Fu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STR3A255D, STR3A200. Please refer to the document for exact specifications by model.

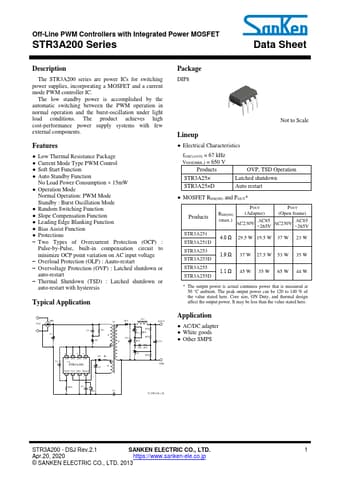

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STR3A255D, STR3A200
Manufacturer
Sanken ↗ electric
File Size
708.82 KB
Datasheet
STR3A200-Sankenelectric.pdf
Description
Off-Line PWM Controllers
Note
This datasheet PDF includes multiple part numbers: STR3A255D, STR3A200.
Please refer to the document for exact specifications by model.
