DGU4015G, N-channel IGBT

VBR(CES) = 400 V, IC = 15 A N-channel Ignition IGBT DGU4015G Data Sheet .
The DGU4015G is 400 V IGBT with Zener diodes and gate resistors, and achieves an ignition coil drive circuit without an external clamped circuit.

datasheet Preview Page 1 from Datasheet4u.com

DGU4015G-Sanken.pdf

DGU4015G Datasheet Preview — Preview of DGU4015G PDF

Datasheet Details

Part number:

DGU4015G

Manufacturer:

Sanken ↗

File Size:

415.29 KB

Description:

N-channel IGBT

Features

* Suitable for High Reliability and Automotive Requirement
* Bare Lead Frame: Pb-free (RoHS Compliant)
* Built-in Zener Diodes
* Built-in Gate Resistors
* Low Saturation Voltage
* V(BR)CES

Applications

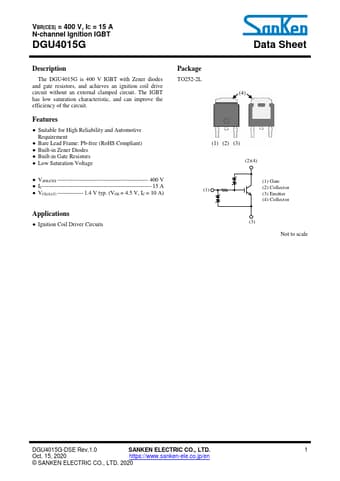

* Ignition Coil Driver Circuits Package TO252-2L (4) (1) (2) (3) (2)(4) (1) Gate (1) (2) Collector (3) Emitter (4) Collector (3) Not to scale DGU4015G-DSE Rev.1.0 SANKEN ELECTRIC CO. , LTD. 1 Oct. 15, 2020 https://www. sanken-ele. co. jp/en © SANKEN ELECTRIC CO. , LTD. 2020 DGU4015G A
