DGU4020GR Datasheet, Igbt, Sanken

DGU4020GR Features

• Igbt
• AEC-Q101 Qualified
• Bare Lead Frame: Pb-free (RoHS Compliant)
• Built-in Zener Diodes
• Built-in Gate Resistors
• Low Saturation Voltage Pack

PDF File Details

Part number:

DGU4020GR

Manufacturer:

Sanken ↗

File Size:

284.93kb

Download:

📄 Datasheet

Description:

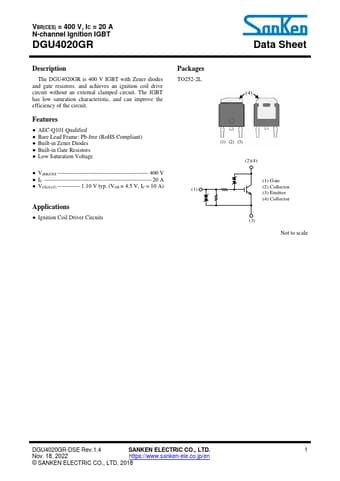

N-channel igbt. The DGU4020GR is 400 V IGBT with Zener diodes and gate resistors, and achieves an ignition coil drive circuit without an external cla

DGU4020GR Application

• Applications
• Ignition Coil Driver Circuits (4) (1) (2) (3) (2)(4) (1) Gate (2) Collector (3) Emitter (4) Collector (3) Not to scale DGU4
