DGU5020GR, N-channel Ignition IGBT

VBR(CES) = 500 V, IC = 20 A N-channel Ignition IGBT DGU5020GR Data Sheet .
The DGU5020GR is 500 V IGBT with Zener diodes and gate resistors, and achieves an ignition coil drive circuit without an external clamped circuit.

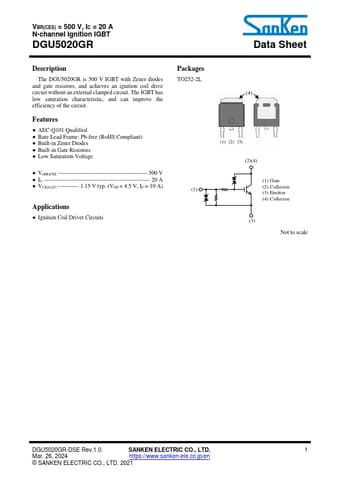

datasheet Preview Page 1 from Datasheet4u.com

DGU5020GR-Sanken.pdf

Preview of DGU5020GR PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

DGU5020GR

Manufacturer:

Sanken ↗

File Size:

317.64 KB

Description:

N-channel Ignition IGBT

Features

* AEC-Q101 Qualified
* Bare Lead Frame: Pb-free (RoHS Compliant)
* Built-in Zener Diodes
* Built-in Gate Resistors
* Low Saturation Voltage
* V(BR)CES

Applications

* Ignition Coil Driver Circuits Packages TO252-2L (1) (4) (1) (2) (3) (2)(4) (1) Gate (2) Collector (3) Emitter (4) Collector (3) Not to scale DGU5020GR-DSE Rev.1.0 SANKEN ELECTRIC CO. , LTD. 1 Mar. 26, 2024 https://www. sanken-ele. co. jp/en © SANKEN ELECTRIC CO. , LTD. 2021 DGU5020GR Abso
