DGU4520GR Datasheet, Igbt, Sanken

DGU4520GR Features

  • Igbt
  • AEC-Q101 Qualified
  • Bare Lead Frame: Pb-free (RoHS Compliant)
  • Built-in Zener Diodes
  • Built-in Gate Resistors
  • Low Saturation Voltage Pack

PDF File Details

Part number:

DGU4520GR

Manufacturer:

Sanken ↗

File Size:

283.71kb

Download:

📄 Datasheet

Description:

N-channel igbt. The DGU4520GR is 450 V IGBT with Zener diodes and gate resistors, and achieves an ignition coil drive circuit without an external cla

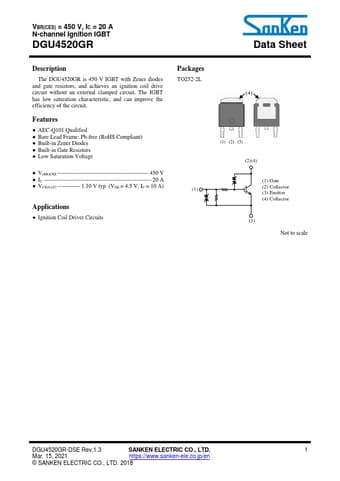

Datasheet Preview: DGU4520GR 📥 Download PDF (283.71kb)
Page 2 of DGU4520GR Page 3 of DGU4520GR

DGU4520GR Application

  • Applications
  • Ignition Coil Driver Circuits (4) (1) (2) (3) (2)(4) (1) Gate (2) Collector (3) Emitter (4) Collector (3) Not to scale DGU4
