Datasheet Details
- Part number
- EM01A
- Manufacturer
- Sanken ↗
- File Size
- 217.16 KB
- Datasheet
- EM01A-Sanken.pdf
- Description
- General-purpose Rectifier Diode
EM01A Description

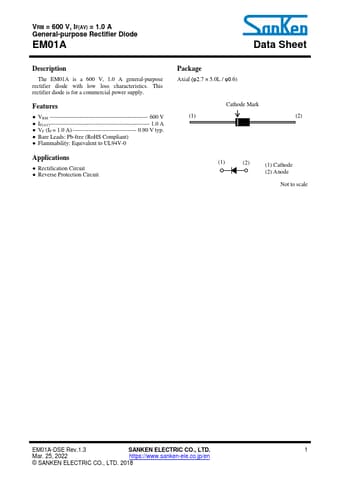

VRM = 600 V, IF(AV) = 1.0 A General-purpose Rectifier Diode EM01A Data Sheet .
The EM01A is a 600 V, 1.
EM01A Features
* VRM
* - 600 V
* IF(AV)
EM01A Applications
* Rectification Circuit
* Reverse Protection Circuit
Package
Axial (φ2.7 × 5.0L / φ0.6)
Cathode Mark
(1)
(2)
(1)
(2)
(1) Cathode
(2) Anode
Not to scale
EM01A-DSE Rev.1.3
SANKEN ELECTRIC CO. , LTD. 1
Mar. 25, 2022
https://www. sanken-ele. co. jp/en
© SANKEN ELECTRIC CO. , LTD. 2018
