EM033C08T Datasheet - Integrated Silicon Solution Inc

EM033C08T, Low Power 32Kx8 SRAM in a 32 pin ROM Pinout Compatible Package

NanoAmp Solutions, Inc.1982 Zanker Road, San Jose, CA 95112 ph: 408-573-8878, FAX: 408-573-8877 www.nanoamp.com EM033C08 EM033C08 Low Power 32Kx8 S.
Pin Name A0-A14 D0-D7 CE OE WE VCC VSS NC Pin Function Address Inputs Data Inputs/Outputs Chip Enable (Active Low) Output Enable (Active Low) Write E.

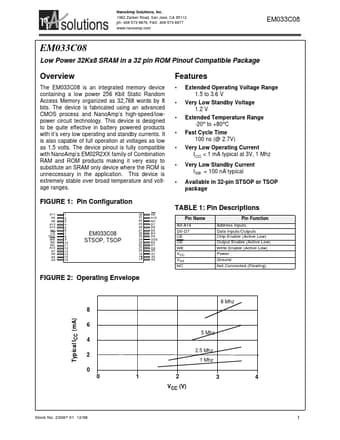

datasheet Preview Page 1 from Datasheet4u.com

EM033C08T_IntegratedSiliconSolutionInc.pdf

EM033C08T Datasheet Preview — Preview of EM033C08T PDF

Datasheet Details

Part number:

EM033C08T

Manufacturer:

Integrated Silicon Solution Inc

File Size:

58.43 KB

Description:

Low Power 32Kx8 SRAM in a 32 pin ROM Pinout Compatible Package

Features

* Extended Operating Voltage Range 1.5 to 3.6 V Very Low Standby Voltage 1.2 V Extended Temperature Range -20o to +80oC Fast Cycle Time 100 ns (@ 2.7V) Very Low Operating Current ICC < 1 mA typical at 3V, 1 Mhz Very Low Standby Curr
