Datasheet Details
- Part number
- EM01C
- Manufacturer
- Sanken ↗
- File Size
- 214.96 KB
- Datasheet
- EM01C-Sanken.pdf
- Description
- General-purpose Rectifier Diode
EM01C Description

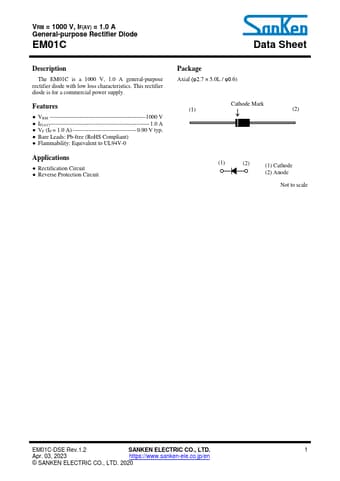

VRM = 1000 V, IF(AV) = 1.0 A General-purpose Rectifier Diode EM01C Data Sheet .
The EM01C is a 1000 V, 1.
EM01C Features
* VRM
* 1000 V
* IF(AV)
EM01C Applications
* Rectification Circuit
* Reverse Protection Circuit
Package
Axial (φ2.7 × 5.0L / φ0.6)
Cathode Mark
(1)
(2)
(1)
(2)
(1) Cathode
(2) Anode
Not to scale
EM01C-DSE Rev.1.2
SANKEN ELECTRIC CO. , LTD. 1
Apr. 03, 2023
https://www. sanken-ele. co. jp/en
© SANKEN ELECTRIC CO. , LTD. 2020
