Datasheet Details
- Part number
- EM01Z
- Manufacturer
- Sanken ↗
- File Size
- 256.60 KB
- Datasheet
- EM01Z-Sanken.pdf
- Description
- General-Purpose Rectifier Diode
EM01Z Description

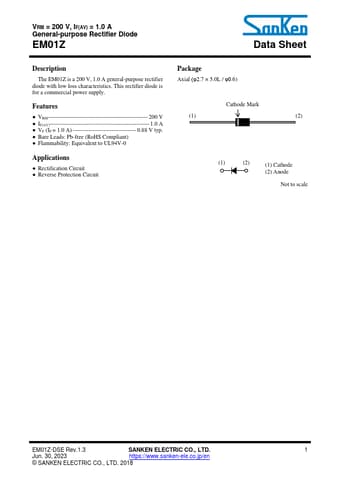

VRM = 200 V, IF(AV) = 1.0 A General-purpose Rectifier Diode EM01Z Data Sheet .
The EM01Z is a 200 V, 1.
EM01Z Features
* VRM
* 200 V
* IF(AV)
EM01Z Applications
* Rectification Circuit
* Reverse Protection Circuit
Package
Axial (φ2.7 × 5.0L / φ0.6)
Cathode Mark
(1)
(2)
(1)
(2)
(1) Cathode
(2) Anode
Not to scale
EM01Z-DSE Rev.1.3
SANKEN ELECTRIC CO. , LTD. 1
Jun. 30, 2023
https://www. sanken-ele. co. jp/en
© SANKEN ELECTRIC CO. , LTD. 2018
