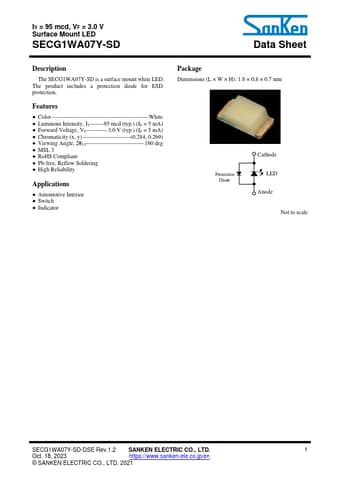

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SECG1WA07Y-SD
Manufacturer	Sanken ↗
File Size	168.43 KB
Description	LED
Datasheet	SECG1WA07Y-SD-Sanken.pdf

SECG1WA07Y-SD Product details

Description

The SECG1WA07Y-SD is a surface mount white LED.

Features

Color -------------------------------------------------- White.
Luminous Intensity, IV-------95 mcd (typ. ) (IF = 5 mA).
Forward Voltage, VF----------- 3.0 V (typ. ) (IF = 5 mA).
Chromaticity (x, y) -------------------------(0.284, 0.269).
Viewing Angle, 2θ1/2------------------------------ 160 deg.
MSL 3.
RoHS Compliant.
Pb-free, Reflow Soldering.
High Reliability.
