SECU1211C-NH20 - LED

Sanken

📥 Download Datasheet

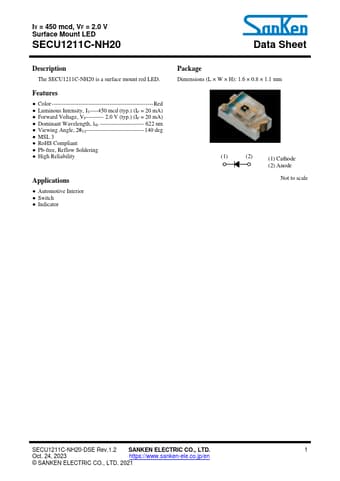

SECU1211C-NH20 Datasheet Preview — Preview of SECU1211C-NH20 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SECU1211C-NH20
Manufacturer	Sanken ↗
File Size	174.80 KB
Description	LED
Datasheet	SECU1211C-NH20-Sanken.pdf

SECU1211C-NH20 Product details

Description

The SECU1211C-NH20 is a surface mount red LED.

Features

Color -----------------------------------------------------Red.
Luminous Intensity, IV----450 mcd (typ. ) (IF = 20 mA).
Forward Voltage, VF--------- 2.0 V (typ. ) (IF = 20 mA).
Dominant Wavelength, λD ----------------------- 622 nm.
Viewing Angle, 2θ1/2------------------------------ 140 deg.
MSL 3.
RoHS Compliant.
Pb-free, Reflow Soldering.
High Reliability.
