SECU1407C-TG - Surface Mount LED

Sanken

📥 Download Datasheet

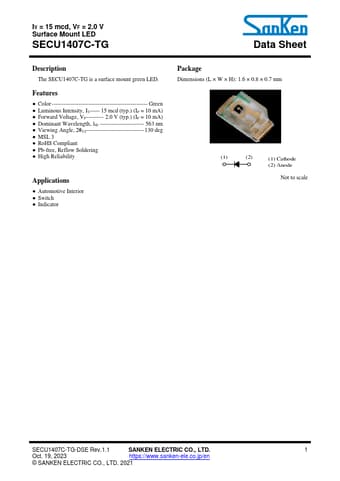

SECU1407C-TG Datasheet Preview — Preview of SECU1407C-TG PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SECU1407C-TG
Manufacturer	Sanken ↗
File Size	162.04 KB
Description	Surface Mount LED
Datasheet	SECU1407C-TG-Sanken.pdf

SECU1407C-TG Product details

Description

The SECU1407C-TG is a surface mount green LED.

Features

Color -------------------------------------------------- Green.
Luminous Intensity, IV----- 15 mcd (typ. ) (IF = 10 mA).
Forward Voltage, VF--------- 2.0 V (typ. ) (IF = 10 mA).
Dominant Wavelength, λD ----------------------- 563 nm.
Viewing Angle, 2θ1/2------------------------------ 130 deg.
MSL 3.
RoHS Compliant.
Pb-free, Reflow Soldering.
High Reliability.
