STR-W6735

Quasi-Resonant Topology Primary Switching Regulators

STR-W6735 Features

* ▪ Quasi-resonant topology IC  Low EMI noise and soft switching ▪ Bottom-skip operation  Improved system efficiency over the entire output load by avoiding increase of switching frequency ▪ Standby burst mode operation => Lowers input power at very light output load condition ▪ Avalanche-guaranteed

STR-W6735 General Description

The STR-W6735 is a quasi-resonant topology IC designed for SMPS applications. It shows lower EMI noise characteristics than conventional PWM solutions, especially at greater than 2 MHz. It also provides a soft-switching mode to turn on the internal MOSFET at close to zero voltage (VDS bottom point) .

STR-W6735 Datasheet (225.98 KB)

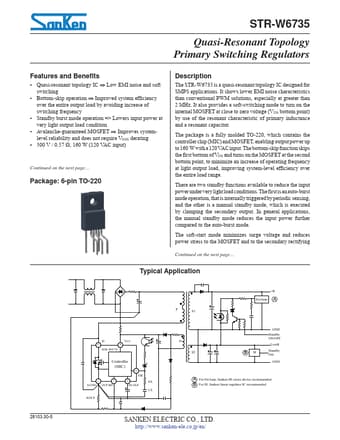

Preview of STR-W6735 PDF

Datasheet Details

Part number:

STR-W6735

Manufacturer:

Sanken ↗

File Size:

225.98 KB

Description:

Quasi-resonant topology primary switching regulators.
