STR-W6753 Quasi-Resonant Topology Primary Switching Regulator

STR-W6753 Description

STR-W6753 Quasi-Resonant Topology Primary Switching Regulators .
The STR-W6753 is a quasi-resonant topology IC designed for SMPS applications.

STR-W6753 Features

* ▪ Quasi-resonant topology IC  Low EMI noise and soft switching ▪ Bottom-skip mode  Improved system efficiency over the entire output load by avoiding increase of switching frequency ▪ Auto-Standby mode  Lowers input power at very light output load condition ▪ Avalanche-guaranteed MOSFET  Improve

STR-W6753 Applications

* It shows lower EMI noise characteristics than conventional PWM solutions, especially at greater than 2 MHz. It also provides a soft-switching mode to turn on the internal MOSFET at close to zero voltage (VDS bottom point) by use of the resonant characteristic of primary inductance and a resonant ca

📥 Download Datasheet

Preview of STR-W6753 PDF

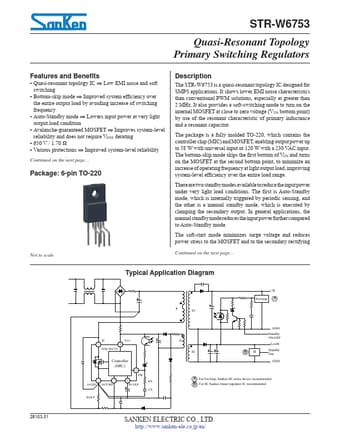

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STR-W6753
Manufacturer
Sanken ↗
File Size
175.24 KB
Datasheet
STR-W6753-Sanken.pdf
Description
Quasi-Resonant Topology Primary Switching Regulator
