STR-Y6456

Power IC

STR-Y6456 Features

* TO-220F-7 Multi-Mode Control The operation mode switching with four steps according to load conditions achieves the optimal high efficiency and low noise power supply systems across the full load range. In Standby: Auto Standby (Auto Burst-Oscillation) Under Low to Middle Load Conditions: 1 or 2 B

STR-Y6456 General Description

The STR-Y6400 series products are power ICs for quasi-resonant switching type power supplies, incorporating a power MOSFET and a controller IC. The product achieves high efficiency and low noise power supply systems across the full load range, by the low standby power, the quasi-resonant operation,.

STR-Y6456 Datasheet (256.61 KB)

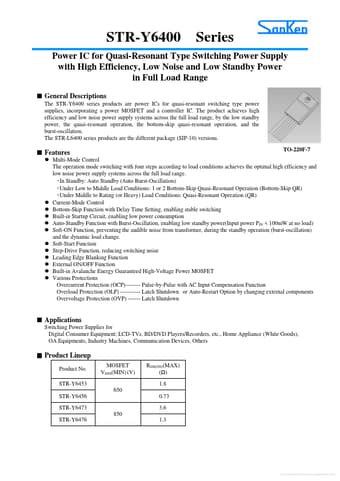

Preview of STR-Y6456 PDF

Datasheet Details

Part number:

STR-Y6456

Manufacturer:

Sanken ↗

File Size:

256.61 KB

Description:

Power ic.
STR-Y6400 Series Power IC for Quasi-Resonant Type Switching Power Supply with High Efficiency, Low Noise and Low Standby Power in Full Load Range
